RIGGING SCREW FORK/SWAGE-SMALL(METRIC)
1
2

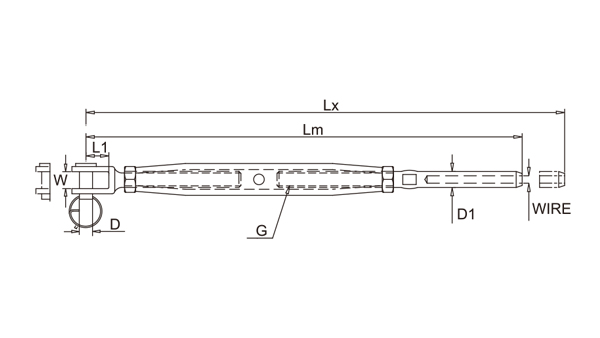

RIGGING SCREW FORK/SWAGE-SMALL(METRIC)
Stainless Steel AISI316,Highly Polished.
Product Details
ITEM NO.
G
WIRE
Lx
Lm
L1
D
D1
W
(mm)
(inch)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
TC20603
M5
3/3.2
1/8''
153
117
12
5
5.5
7.5
TC20604
M6
4
5/32''
166
122
12
5
6.35
7.5
TC20605
M6
5
3/16''
176
132
13
6
7.5
9.5
