Rigging screw fork/fork-small(metric)
1
2
Rigging screw fork/fork-small(metric)
Stainless Steel AISI316,Highly Polished.
Product Details

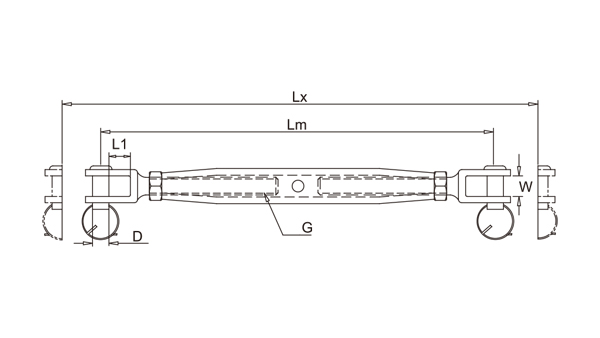

ITEM NO.
G
Lx
Lm
L1
W
D
(mm)
(mm)
(mm)
(mm)
(mm)
TC20205
M5
143
106
12
7.5
5
TC20206
M6
155
111
12
7.5
5
TC20208
M8
186
140
15
11
8
TC20210
M10
204
157
15
11
8
TC20212
M12
248
200
19.5
12.5
9.5
