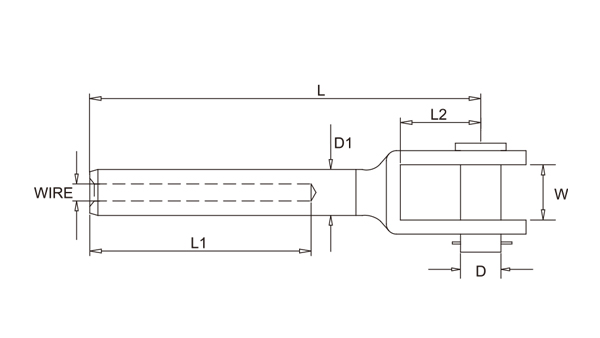

WELDED FORK TERMINAL-SMALL
1
2
WELDED FORK TERMINAL-SMALL
Stainless Steel AISI316,Highly Polished.
Product Details
ITEM NO.
WIRE
L
L1
L2
D
D1
W
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
TC31203
3
50
25
12
5
5.5
7.5
TC31204
4
50
25
12
5
6.35
7.5
TC31205
5
58
30
13
6
7.5
9.5
TC31206
6
72
40
15
8
9
11
TC31208
8
85
50
15
8
12.58
11
