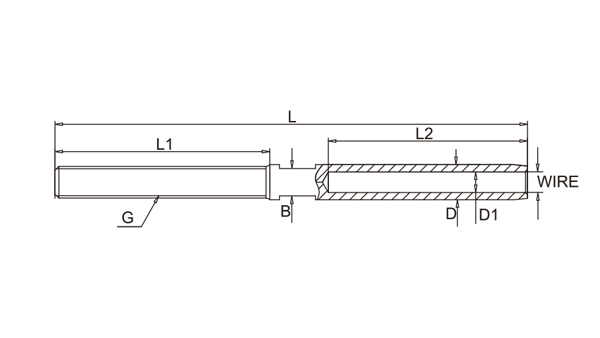

THREAD TERMINAL (METRIC)
Stainless Steel AISI316,Highly Polished.
| ITEM NO. RHT | ITEM NO. LHT | WIRE | G | L | L1 | L2 | D | D1 | B | B.L. |
| （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （kg） | |||
| TC30102 | TC30102L | 2 | M5 | 86 | 40 | 32 | 5.5 | 2.2 | 4 | 800 |
| TC30103 | TC30103L | 3 | M6 | 100 | 48 | 39 | 6.35 | 3.5 | 5 | 1250 |
| TC30104 | TC30104L | 4 | M6 | 110 | 48 | 45 | 6.35 | 4.4 | 6 | 1250 |
| TC30104A | TC30104AL | 4 | M8 | 117 | 57 | 45 | 7.5 | 4.4 | 6 | 2350 |
| TC30105 | TC30105L | 5 | M8 | 124 | 57 | 52 | 6 | 5.3 | 7 | 2350 |
| TC30105A | TC30105AL | 5 | M10 | 130 | 63 | 52 | 9 | 5.3 | 7 | 3500 |
| TC30106 | TC30106L | 6 | M10 | 145 | 63 | 64 | 12.6 | 6.5 | 10 | 3500 |
| TC30106A | TC30106AL | 6 | M12 | 162 | 80 | 64 | 12.6 | 6.5 | 10 | 5100 |
| TC30108 | TC30108L | 8 | M12 | 180 | 80 | 80 | 16 | 8.4 | 14 | 5100 |
| TC30107 | TC30107L | 7 | M14 | 180 | 90 | 70 | 14.2 | 7.5 | 12 | 5900 |
| TC30108A | TC30108AL | 8 | M16 | 200 | 100 | 80 | 16 | 8.4 | 14 | 8000 |
| TC30110 | TC30110L | 10 | M16 | 210 | 100 | 90 | 18 | 10.5 | 15 | 8000 |
| TC30110A | TC30110AL | 10 | M20 | 230 | 119 | 90 | 18 | 10.5 | 15 | 1700 |
| TC30112 | TC30112L | 12 | M20 | 245 | 120 | 105 | 20 | 12.5 | 17 | 17000 |
| TC30114 | TC30114L | 14 | M22 | 308 | 140 | 140 | 25 | 14.8 | 22 | 20000 |
| TC30116 | TC30116L | 16 | M24 | 363 | 170 | 160 | 28 | 17 | 24 | 20000 |
